Personal Knowledge Graphs

Video


Slides

Personal Knowledge Graphs

Personal Knowledge Graphs

Why, what, and where to?


Ivo Velitchkov | July 2nd 2021

Balanced Presentation

Three waves

Graph is in the air



  • Open Knowledge Graphs

  • Enterprise Knowledge Graphs

  • Personal Knowledge Graphs

Implications for the uptake of Linked Data

Personal Knowledge Graphs (PKG)



Everybody is already using PKG

Nobody is using PKG yet

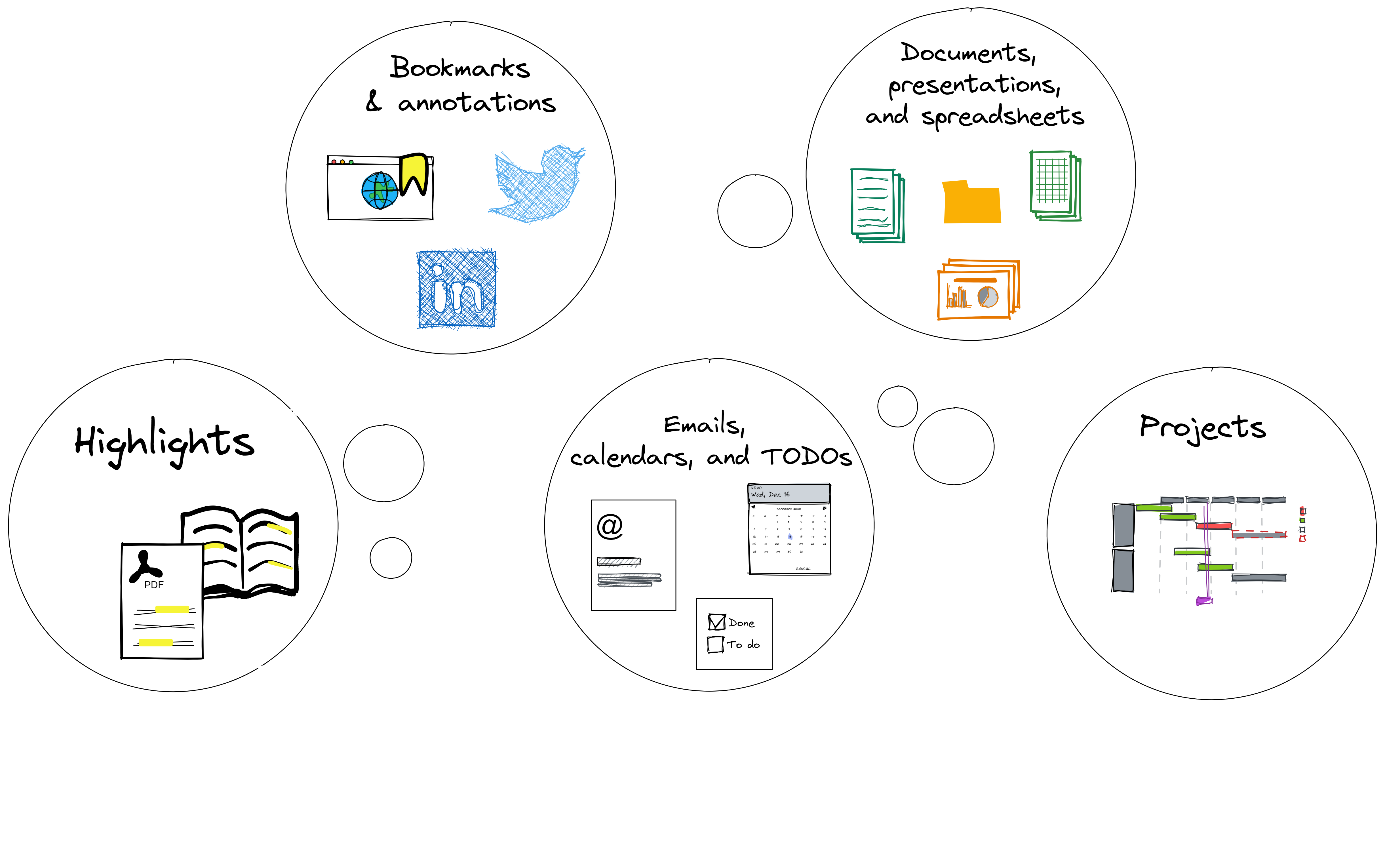

Personal information is trapped in silos

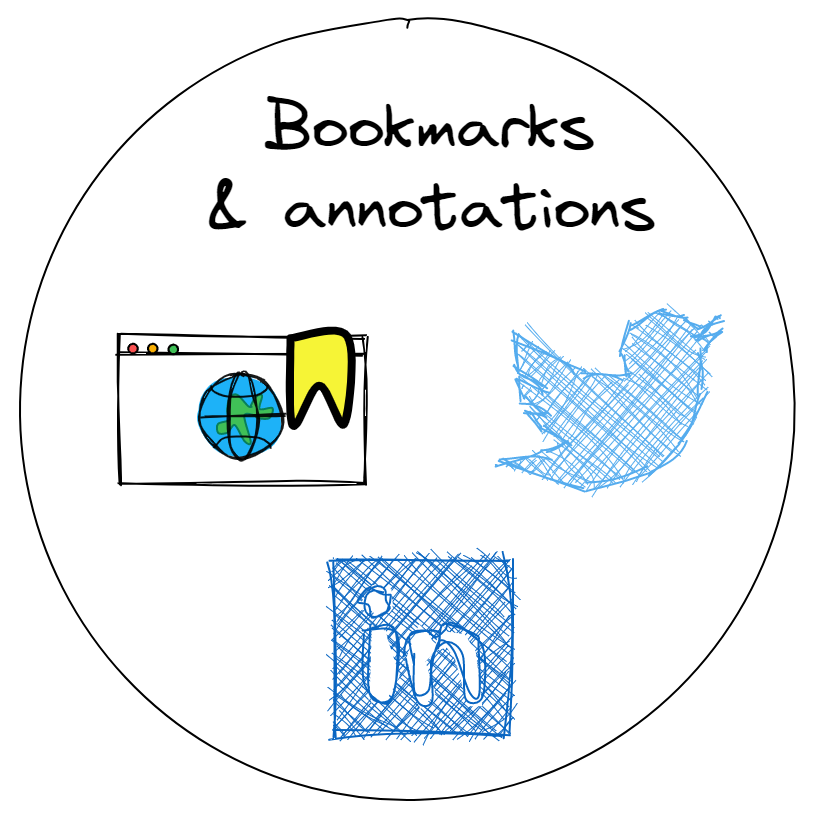

Bookmarks

  • “Re-finding”
  • 70% save frequently accessed website as bookmarks
  • Bookmarks are used for retrieving only
    • 16% of bookmarked sites
      • Possible reason: ^^fail to preserve the context^^ of the original retrieval

      • Source: Out of sight and out of mind: Bookmarks are created but not used (2021)
      • Olaf Bergman, Steve Whittaker, Joel Schooler
  • Also: what is bookmarked is a whole page but we are interested only in certain parts
    • Enter ^^web annotation^^ tools: Diigo, Hypothes.is
  • Bookmarking items on social media
    • often with the meaning of “read later”

Documents

  • Usually don’t have persistent IDs
  • Their parts* never do

= not reusable not linkable

  • Application and data are coupled

* paragraphs, images, bullets

The nodes are stored but the edges are in our heads 1/2

The nodes are stored but the edges are in our heads 2/2



Everybody is already using PKG

Associations, history, and context are in our heads

Personal Knowledge Management Systems

2019-2020: Eruption of “tools for thought”
(networked note-taking)

Before 2019

2019 - 2020

This is the second wave

The second wave

  • Some history
  • Interacting with a PKG
  • My experience and hacks
  • Architecture and technology patterns
  • Some other observations
  • The limitations of PKG apps

The first PKG

Luhmann’s Zettelkasten


Niklas Luhmann (1927–1998)


  • 70 books and 400 articles
  • Zettelkasten
      • 90 000 linked cards
      • 30 years

The PKG as a 'thinking partner'


Every note is only an element that receives its quality only from the network of links and back-links within the system.

As a result of extensive work with this technique, a kind of secondary memory will arise, an alter ego with who we can constantly communicate. It proves to be similar to our own memory in that it does not have a thoroughly constructed order of its entirety, not hierarchy, and most certainly no linear structure like a book. Just because of this, it gets its own life, independent of its author.

My PKG?

My PKG, 14 months old

  • 3117 nodes (pages)

But my actual graph is 20 times bigger:

Use cases

  • Daily tasks
  • Events (integration with calendar)
    • preparation
    • notes
    • tasks
    • follow-up
  • Research
    • Projects
    • Collecting knowledge
      • Bookmarks with highlights from
        • Kindle books
        • Web pages, articles
        • Embebed PDFs
    • Linking ideas
  • Writing (drafting and directly publishing where possible)
    • Journaling
    • Articles
    • Books
    • Emails
    • Posts
      • WordPress
      • Twitter
      • Slack
      • LinkedIn
    • Reviews
    • Newsletters
    • Other documents
  • Projects
    • Events (integration with calendar)
    • Presentations
    • Planning
    • Issues
    • Risks
    • Test
    • Deliveries
    • Documentation
  • Presentations (both making and presenting)
  • Relationship management
  • Learning
  • Home
  • Tracking service subscriptions
  • Training
  • Code

More integration, fewer silo-apps

  • Reduced or completely stopped using
    • MS Word and Google Doc (now only for reviews)
    • PowerPoint and Google Slides
    • Evernote
    • Trello
    • Plectica
    • Simple Mind
    • Pastebin
    • Google Tasks
    • Zenpen
    • Diigo

Presenting about PKG from a PKG

Relationships

  • Most current apps stop at references

  • But what kind of reference?

  • And what’s the direction?



Relationships in Roam



Turn Roam into a Semantic PKG

RIO flow

  • ROCO = ROam Core Ontology
    • Classes such as Class and Property
    • Properties such as subClassOf and same as
  • RIO = Roam Internal Ontology
    • Currently:
    • 111 classes
    • 28 properties
  • Demo: https://youtu.be/F1HYaGfqzLM

Linking a PKG with open knowledge graphs

  • General Knowledge
    • Wikidata: 12.5 billion statements
    • DBpedia: 860 million
    • YAGO: 0.478 billion
    • Google Knowledge Graph: 86 billion
  • Scientific publications
    • Microsoft Academic Knowledge Graph: 10 billion
    • Open Citations: 8 billion
  • Domain knowlegde
    • Life sciences
      • Uniprot: 81 billion
      • IDSM: 14 billion
    • Government
      • EU publications: 0.893 billion
      • UK Parliament
      • Italian Parliament
      • Swiss Federal GeoPortal

Architecture and technology patterns

  • Processing at client side
  • Markdown (sign of the third wave)
  • Clojure

Kanopi architecture

  • Technology stack
    • Backend – Postgres, Clojure
    • API – GraphQL
    • Frontend – React, Redux

Other observations

  • Very high importance of
    • extensions (plug-ins)
    • community
  • Growing importance of having full control over personal data
    • Best achieved so far by MD-based apps

Evolution of PKG 1/2

Evolution of PKG 2/2

The limitations of the PKG apps (second wave)

  • Scope
    • Most of your personal data is always “outside”, not connected
      • Example: When I search for “PKG”
        • I should get results from
          • Text documents (Word, Google doc)
          • PDFs
          • eBooks
          • Emails
            • Containing in the subject
            • Containing PKG in the body
          • LinkedIn
            • My posts containg PKG
            • My bookmars containg PKG
            • The posts containing PKG that I reacted to
          • Twitter
            • My tweets with PKG
            • My RTs with PKG
            • My likes with PKG
            • Tweets with PKG I commented to
          • Discord
            • Messages with PKG
          • Slack
            • Messages with PKG
          • Telegram
            • Messages with PKG
          • Notebooks
          • GitHub
  • Own your own data
  • Interoperability
    • My workflow on X needs a feature/plug-in only available for Y

Conclusion

  • Just like EKG,

  • PKG should be ^^data-centric^^


  • Principles

    • Data is self-describing and does not rely on an application for interpretation and meaning.
    • Data is expressed in open, non-proprietary formats.
    • Applications are allowed to visit the data, perform their magic and express the results of their process back into the data layer
    • Access to and security of the data is a responsibility of the data layer, and not managed by applications.

Personal Knowledge Graphs (PKG)



Nobody is using PKG yet

The third wave

Enablers

Labs · Solid

  • Solid
  • Decentralized technologies
    • IPFS
    • dWeb

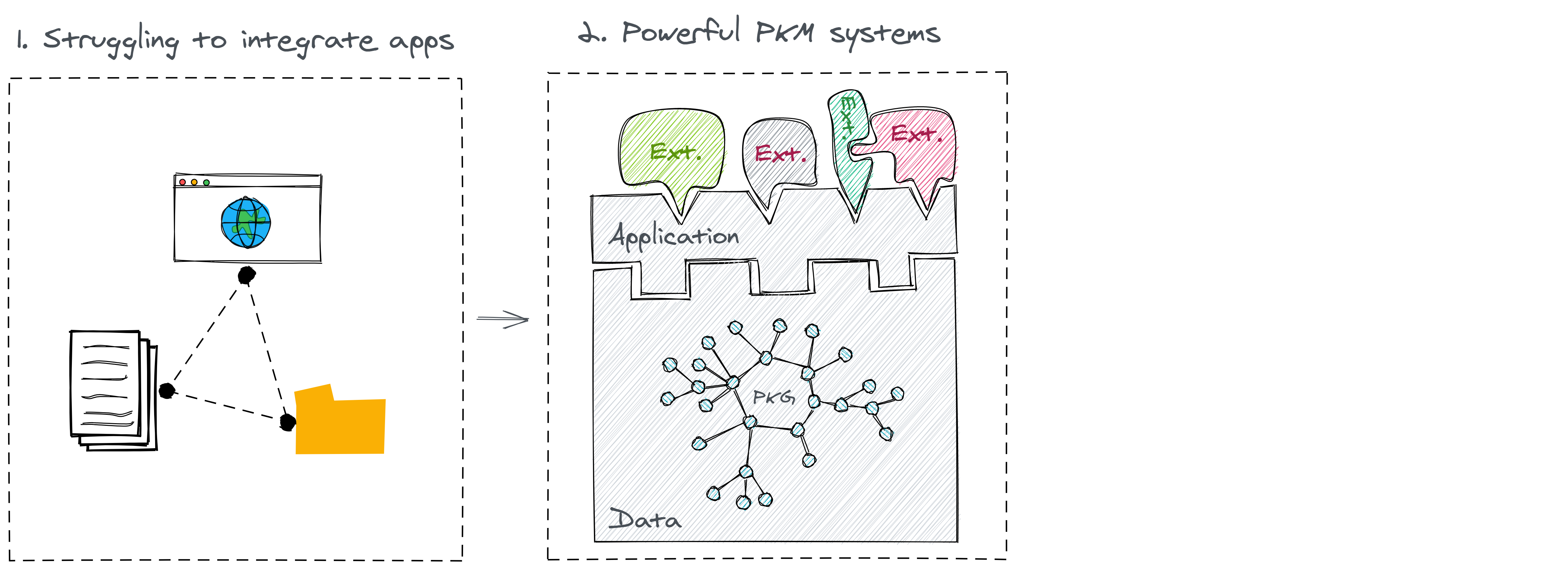

Evolution of PKG: Apps are visiting magicians



This presentation is also available on my public graph.
